Discharge to shielded connector will normally occur to shell - may be unnecessary to test pins
Discharge to unshielded connector will normally occur to pin - may be necessary to test pins
ESD ( Electrostatic Discharge ) Immunity Testing Services
- EMC ( Electromagnetic Compatibility ) Laboratory Testing Services
We are NABL Accredited Laboratory as per ISO / IEC 17025:2017 and provide ESD ( Electrostatic Discharge ) Immunity Testing Services as per IEC61000-4-2 ( as important part of EMC ( Electromagnetic Compatibility ) Laboratory Testing Services ) and other equivalent standards from Pune, Maharashtra, India.
Testing And Measurement Of ESD Immunity Test As Per BS EN61000-4-2 . On Electrical Apparatus As Per BS EN61000-6-1 . Test For Immunity On Industrial Environments As Per IEC61000-6-2 . ESD Test For Power Quality Analyser As Per IEC61326-1 .ESD Test On IT And Radio Equipment As Per CISPR24. ESD Test On Medical Equipment For Basic Safety And Essential Performance As Per IEC60601-1-2. Information Technology Immunity Characteristics As Per BS EN55024.
Electromagnetic Compatibility Testing / Electrostatic Discharge Immunity Test

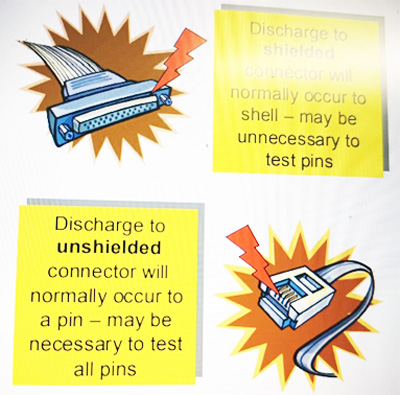

Testing Connector Pins

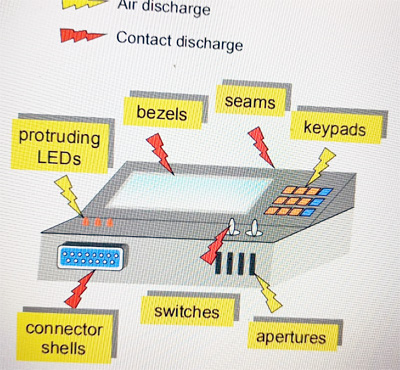

Choice of Discharge Points
Air Discharge
Protruding LEDs
Keypads
Apertures
Contact Discharge
Bezels
Seams
Connector Shells
Switches

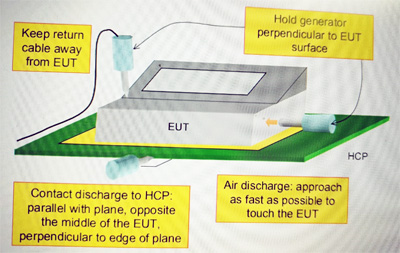

Contact Discharge to HCP
Parallel with plane
Opposite the middle of the EUT
Prpendicular to edge of plane
Contact Discharge
Approach as fast as possible to touch the EUT
Keep return cable away from EUT
Hold generator perpendicular to EUT surface

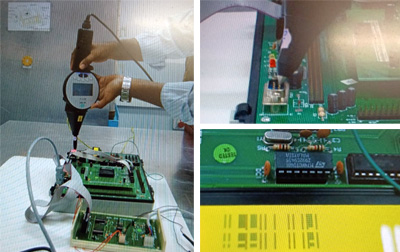

Air Discharge on seven segment display
Contact discharge on DB9 Connector
LCD display after 15kV discharge
